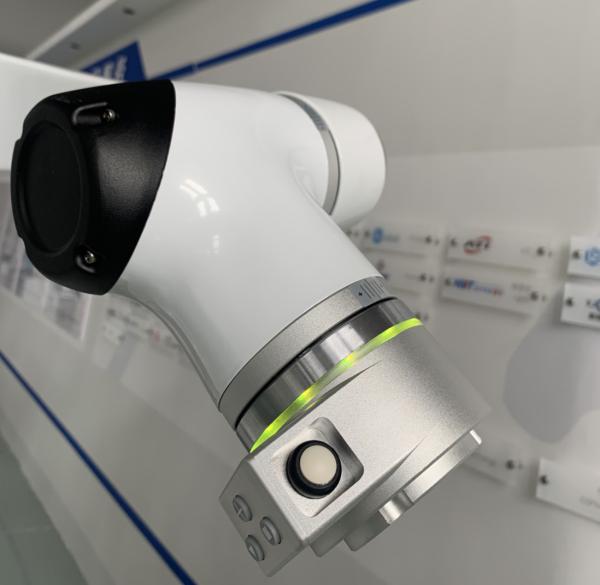

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

Product Categories
Shanghai YoungYou Intelligence Co.,Ltd.
Contact Now

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

Brand Name : HANS

Model Number : E15

Certification : ce cr

Place of Origin : China

MOQ : 1

Supply Ability : 500sets/month

Packaging Details : carton ➕ Foam inner packaging, outer frame fixed by wood frame

Warranty of core components : 1 Year

Communication mode : TCP/IP Modbus

IO power : 24V 2A

Repeatability : 0.1mm

Axis : 6 axis

Payload : 15kg

Reach : 1300mm

IP rating : IP54

Control cabinet size : 536*445*319

Contact Now

Cooperative arm can be simply configured with Mech-Mind vision system payload 15kg

The loading and unloading process of machine tools is an application that is very skilled in using robots. However, with the difficulty of chip production, many robot manufacturers cannot deliver successfully. Both abb and kuka robots will have a delivery date of more than 50 weeks.

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

15kg Cooperative Arm Robotic Handling Systems With Mech-Mind Vision

ITEM VALUE
Applicable vision system

HIKVISONCOGNEXKEYENCEBASLERMicromatch

Mech-MindUBisenseSeizet
After Warranty Service Video technical support, Online support
Local Service Location None
Showroom Location China
Video outgoing-inspection Provided
Machinery Test Report Provided
Communication mode TCP/IP Modbus
Warranty of core components 1 Year
Core Components PLC, Motor
Place of Origin China
Package Size 1050*610*480mm
Gross Weight 70kg
Warranty 1 Year
Technical service Online support
Weight (KG) 60kg
Brand HANS
Axis 6 axis
Payload 15kg
Reach 1300mm
Control cabinet size 536X445X319mm
Maximum operating speed 2m/s
Repeatability ±0.1mm
IP protection IP54
Temperature range 0~50°
Typical power consumption 600W

We used this e18 for puncture surgery in a hospital in Peru. Very high accuracy, very stable operation. If you need more product information, please contact me:+8618601676399
